Round steel columns are vertical load-bearing structural members primarily composed of circular hollow steel tubes. In engineering applications, they mainly withstand axial compression while also accommodating bending moments, torsional moments, and other combined loads depending on the structural configuration. These columns can be fabricated using seamless or welded circular steel tubes; specific parameters such as tube diameter, wall thickness, material grade, and connection details—are determined based on design loads, span, building height, installation conditions, and the service environment. The product offering extends beyond the tubular body itself to include a comprehensive system of components, such as base plates, cap plates, stiffeners, corbels, gusset plates, flanges, connection plates, high-strength bolts, and lifting attachments.

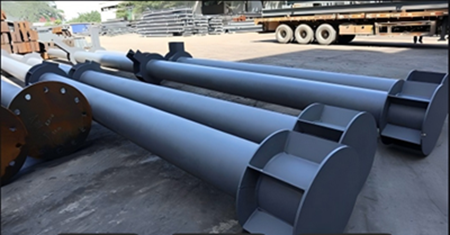

Round steel columns are fabricated to specific lengths and connection details based on structural construction drawings. The system comprises the main tubular body, top and bottom end connections, connecting accessories, and auxiliary components, organized into five modules: the column body, column base/foundation interface, column cap connection, beam-to-column connection, and auxiliary accessories. Specifications are typically designated as φD×t×L, where D represents the outer diameter, t the wall thickness, and L the component length (e.g., φ219×8×6000 indicates an outer diameter of 219 mm, wall thickness of 8 mm, and length of 6000 mm). Standard outer diameters include φ89, 114, 165, 219, 273, 325, 426, 530, 630, and larger sizes, with wall thicknesses selectable based on project requirements.

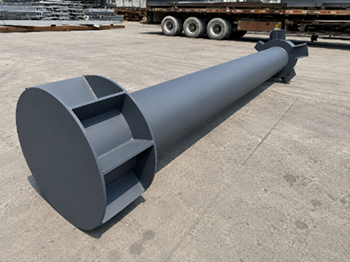

For extra-long columns, segmental fabrication may be employed to accommodate transportation, lifting, and on-site construction constraints, with connections made via flanges or welded joints. Column bases can be fitted with base plates, anchor bolts, shims, and leveling components depending on the foundation type; column tops can be equipped with cap plates, connection mounts, or flanges; and beam-to-column connections can incorporate corbels, gusset plates, connection plates, or clamps—as specified in the drawings—to connect the tubular column to upper structures such as steel beams, trusses, or space frames.
The circular cross-section ensures uniform load distribution in all directions, making it ideal for axial compression and multi-directional loading conditions.
The smooth, curved profile offers a sophisticated look, balancing structural load-bearing capacity with overall architectural aesthetics.
The circular profile minimizes wind resistance, making it suitable for open-air structures such as canopies, pergolas, and stadiums.
Optimizes the balance between load-bearing capacity and self-weight while meeting design requirements, facilitating transport, lifting, and on-site installation.
Supports various anti-corrosion treatments—such as spray coating and hot-dip galvanizing—allowing for solutions tailored to specific environments like humid or outdoor settings.
Customizable specifications—including outer diameter, wall thickness, length, connection plates, base plates, and embedded parts—meet the diverse needs of steel structure projects.
Circular steel columns are custom-engineered structural components; their quality depends not only on the raw steel material but also on critical processing stages such as cutting, rolling, welding, straightening, connection assembly, and anti-corrosion treatment.
Raw material inspection → Layout and cutting → Rolling and forming → Column body welding → Weld inspection → Rounding and straightening → End and bevel processing → Assembly of base plates, top plates, and connections → Connection welding → Hole cutting and final alignment → Rust removal and anti-corrosion treatment → Final inspection, labeling, packaging, and shipping.
Seamless circular columns are produced through the further processing of finished seamless steel pipes. Welded circular columns involve additional steps—such as steel plate cutting, rolling, and longitudinal welding—making them particularly suitable for projects requiring large diameters, thick walls, or non-standard dimensions.
Following welding, non-destructive testing (NDT) is performed on relevant welds according to design specifications; the finished component undergoes a final inspection covering dimensional accuracy, weld quality, and the integrity of the anti-corrosion coating. Weld grades, inspection ratios, and acceptance criteria for different projects shall be determined in accordance with design documents and applicable standards.
Vertical support members for industrial plants, warehouses, and prefabricated steel structures.
Steel columns and structural supports for stadiums, exhibition centers, long-span buildings, transport terminals, etc.
Building entrance canopies, steel walkways, connecting corridors, and associated support structures.
Landscape pergolas, decorative columns, building facades, and other projects requiring a balance of structural integrity and aesthetic design.
Applicable to municipal structures, bridge-related structures, guardrail posts, etc., based on engineering design.
For projects involving towering heights, long spans, multi-directional connections, or complex joints, the specifications of circular tube columns and the detailed design of connections can be determined through structural analysis. The application scope listed in original product documentation includes industrial plants, bridges, venues, municipal facilities, landscaping, and prefabricated buildings.

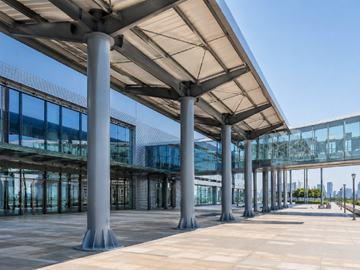

A modern exhibition center utilizes a long-span steel canopy at its entrance, connected to the building's corridor system. The project required vertical support for the canopy and corridors while also demanding high standards for architectural aesthetics, circulation space, and overall visual impact; consequently, circular steel tube columns were selected as the primary support members.
The circular tube columns feature a clean, streamlined profile that creates a cohesive architectural language alongside the glass curtain walls and modern steel roof structure. Structurally, the columns are anchored to the foundation via base plates and stiffening elements, while their upper sections connect to steel beams and the roof structure, forming a complete support system for the canopy.
Yes. Circular tube columns can be customized based on engineering drawings regarding outer diameter, wall thickness, length, material, and connection type. We also provide supporting fabrication for base plates, top plates, stiffener plates, connection plates, corbels, flanges, embedded parts, etc. For exceptionally long components, fabrication can be carried out in sections—depending on transportation and installation requirements—with connections made via flanges or welding.

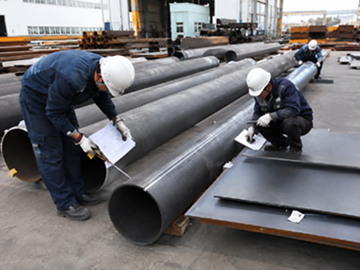

The fabrication process encompasses stages such as raw material inspection, cutting, welding, rounding and straightening, joint assembly, hole drilling, anti-corrosion treatment, and final product inspection. Non-destructive testing (NDT) is performed after welding in accordance with design specifications. At the finished product stage, dimensional accuracy, weld quality, and anti-corrosion coatings are verified; components are then labeled before being placed in storage or shipped.
Circular steel columns can be fabricated in sections based on length and project conditions, utilizing flange or welded connections. Finished components are labeled, inspected, and packaged for shipment, facilitating the handling of extra-long components.
